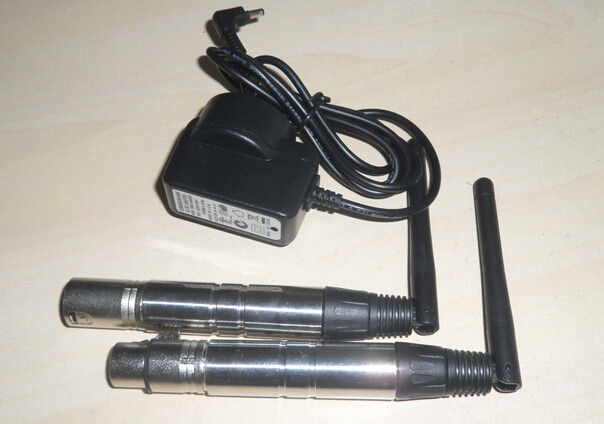

2.4g Dmx 512 3xlr Wireless Dmx Lighting Controller Transmitter And Receiver

Ürün ayrıntıları:

Place of Origin:	Guangzhou china
Marka adı:	JIALE
Model Number:	JL-WXXh02

İletişim

Detaylı ürün tanımı

Input voltage:

12VDC 500mA min

Communication distance:

500m(visible distance)

Max transmitting power:

20dBm

Signal socket:

3pin XLR

Vurgulamak:

dmx light controller

dmx512 light controller

2.4g Dmx 512 3xlr Wireless Dmx Lighting Controller

Transmitter And Receiver

Features:

1. Transmitting/receiving standard DMX512 protocol data of console,and the master- slaver on line signal of the same kind of lighting each other.

2. Single key to operate,tricolor LED indicator.

The LED indicator bright:No DMX or wireless signal.

Red LED flash:Transmitting.

Green LED flash:Receiving

3. 126 frequencies band, FH design, and frequency-hopping synchronization automatically.

4. 7 groups ID code to set these different wireless nets without any interfere each other in the same place

5 Input voltage:12VDC 500mA min.

6. Communication distance:500m(visible distance)

7. Max transmitting power:20dBm

8. Receiver sensitive:-94dBm

9. Signal socket:3/5pin male XLR.

Establishing Communication:

1. Power on DMX512 wireless received board and transmitted board.

2. Press “Key” button to set same ID value of transmitted board and received board. To set up different ID value if you need use more than 1 group wireless net at the same time at the same place, the group wireless net is working for the same ID code.

a) ID Code- - - -“1-7” groups ID code, press “KEY” for setting, press again to set ID, then ID value adding 1 each time by press

ID code and LED color corresponding relationship:
